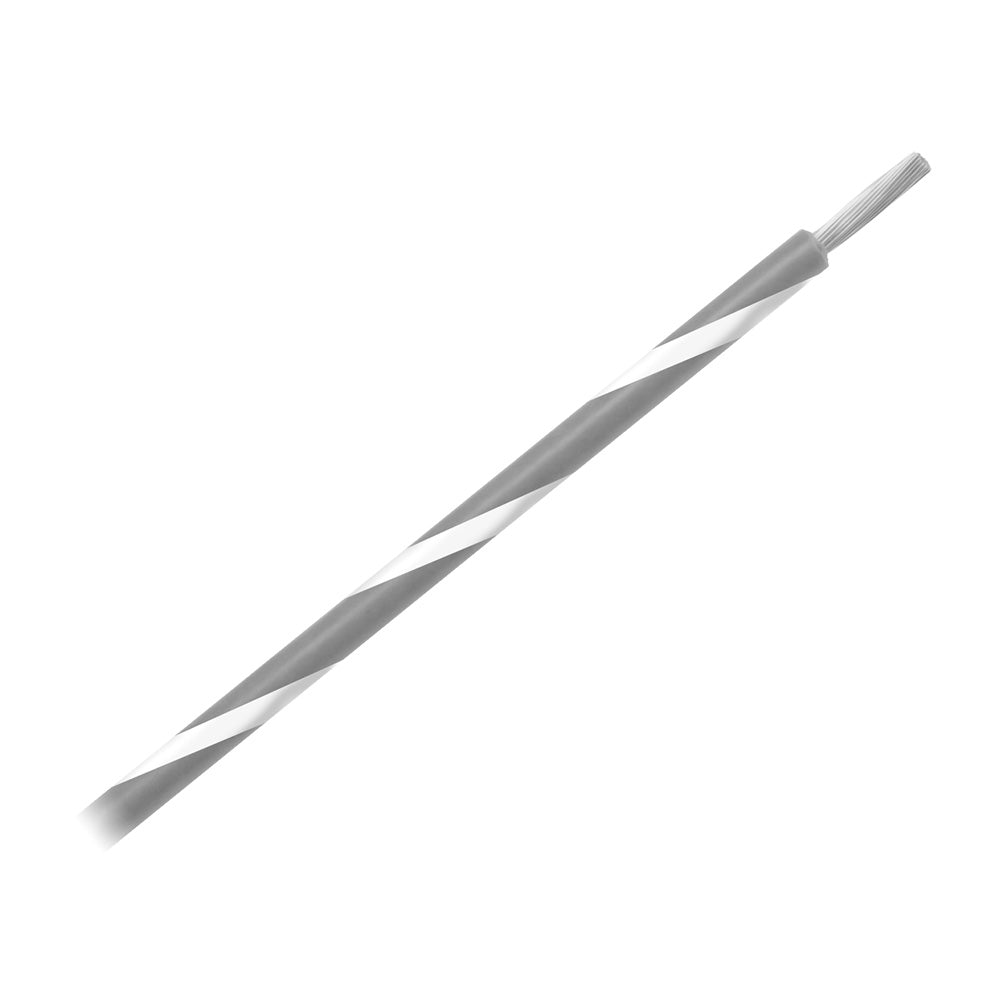

14 AWG Gauge Striped Marine Wire 500' Spool - Grey with White Stripe

Striped wire is perfect for situations involving a large number of wires. Using 14 AWG striped marine wire makes the identification process easier, which increases job efficiency. All of Pacer's primary wire is constructed in Sarasota, FL, USA, from Type III Class K tinned copper. During the manufacturing process, the copper conductors are jacketed with PVC insulation. This insulation is specifically designed to be durable and flexible. All of Pacer's primary striped wire meets the standards and requirements of UL, ABYC, and NMMA. How many possible combinations of 14 AWG striped marine wire does Pacer offer? Choice is everything, and Pacer has gone out of the way to offer just that. By offering a variety of options, you are guaranteed to find the combination you are looking for. Pacer offers over 100 possible combinations for 14 AWG striped marine wire. Have a question about striped marine wire? Contact a Pacer expert today.

Features:

• Stranded, tinned copper conductors
• Highly flexible color-coded insulation
• Annealed Finely Stranded Tinned Copper ASTM b172 Class K
• Resistant to: Acid, Alkali, Abrasion, Flame, Gasoline, Oil, Moisture

Specifications:

• Insulation: -20 °C to 105 °C Flexible, Color Coded PVC
• Temperature Rating: 105 °C Dry, 75 °C Wet, 60 °C Oil
• Voltage Rating: 600-V

Applications:

• Point-to-point wiring
• Internal wiring of panels and motors

Compliances:

• UL Standard 1426 (BC-5W2)
• AWM 1015/1230
• AWM 1028/1231
• MTW, CSA: TEW
• ABYC: E-8.14, E-9.14, Coast Guard: 33 CFR part183

Specifications:

• Color: Grey/White
• Gauge: 14 AWG
• Length (Feet): 500'
• Box Dimensions: 6"H x 7"W x 7"L WT: 10.35 lbs
