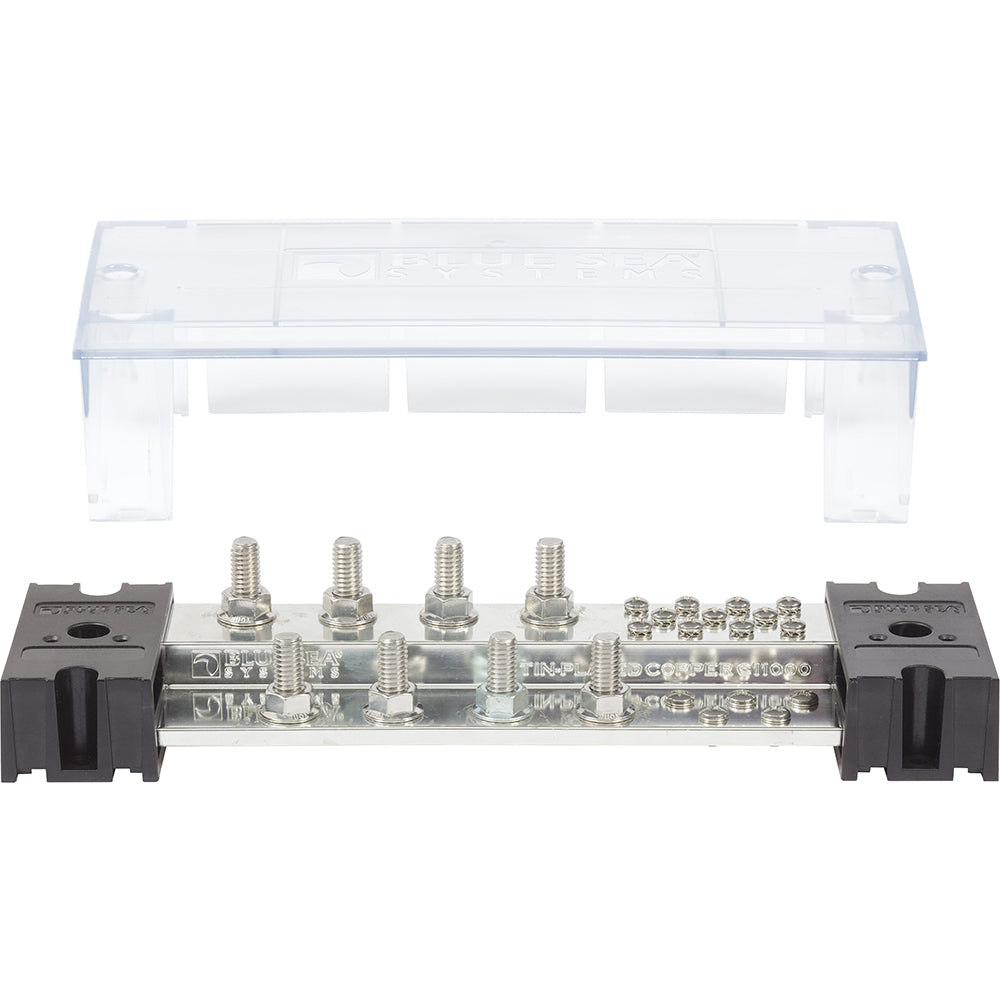

PowerBar 1000 - 8 3/8" Terminal Studs w/Cover
Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Amp busbar with various size studs and screws to connect conductors and fuse blocks.
Features:
- 1,000 Amp busbar for large complex wiring systems
- Tin plated pure electrical copper for maximum conductivity

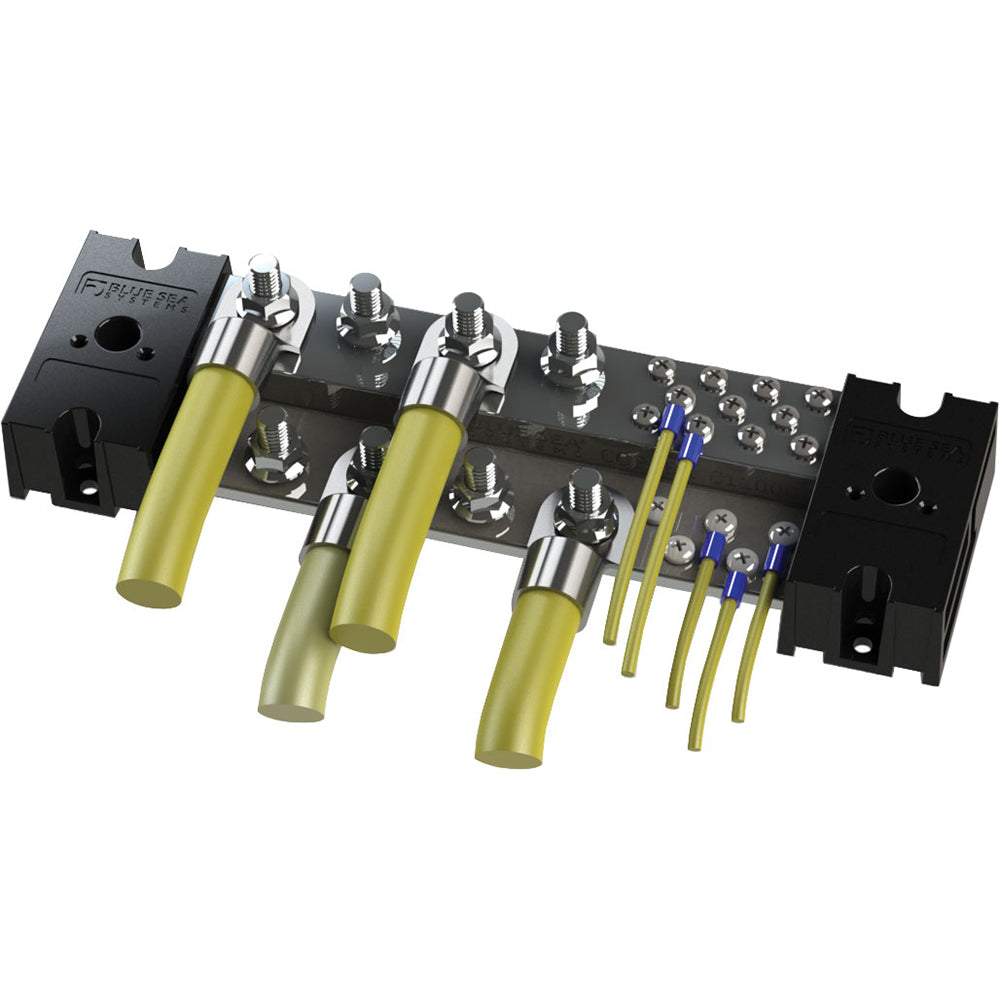

- Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars
- Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
- One-piece serrated flange nuts ensure correct and secure connections
- Stainless steel 8-32 screws with captive lock washers for securing smaller gauge wires
- Busbar may be cut to a shorter length to accommodate constricted spaces
- Bi-directional busbar end caps allow the ganging of additional busbars
- Snap on insulating cover meets ABYC and USCG requirements and includes label recess
Specs:
- Number of Terminal Studs: 8
- Continuous Rating: 1000A
- Bus Material: Tin-Plated Copper C11000
- Mounting Holes: Accepts #10 (M5) Screws
- Terminal Stud Size: 3/8
