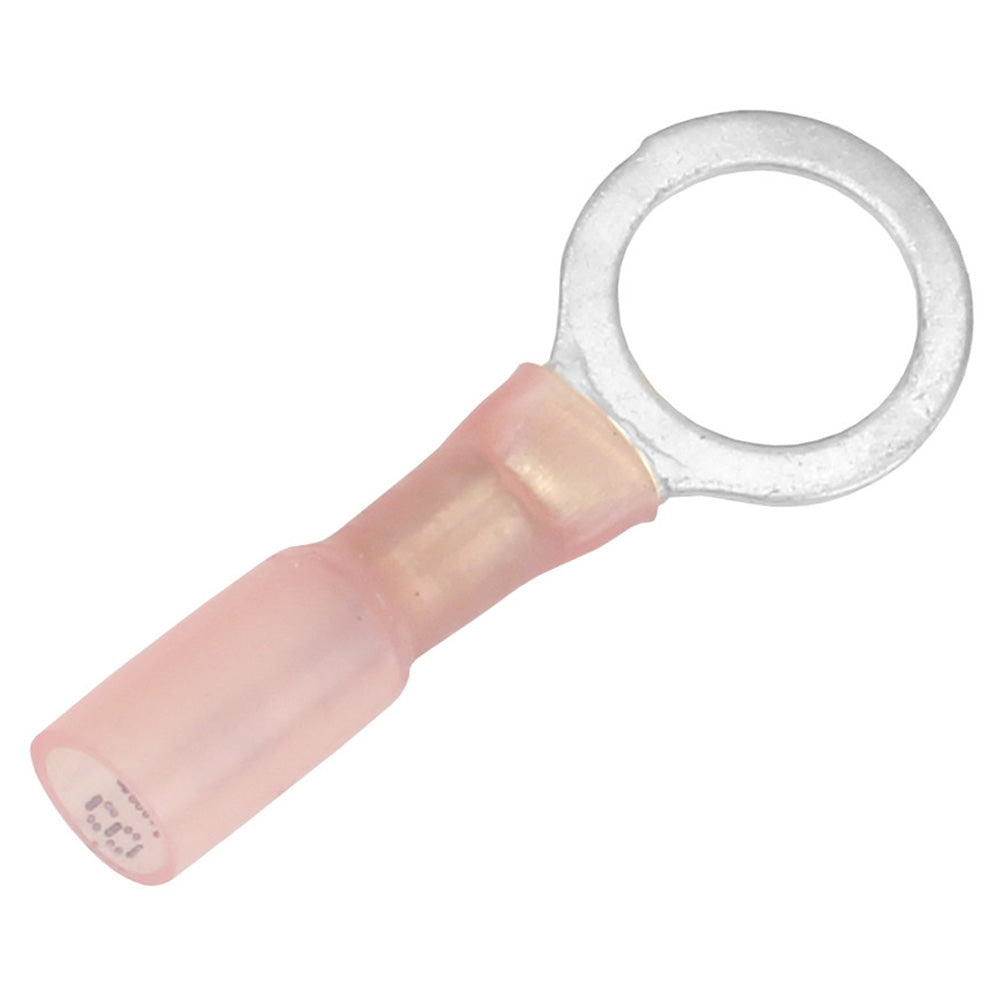

22-18 AWG Heat Shrink Ring Terminal - 3/8" Stud Size - 25 Pack

Ring terminals are used to connect wires to a connection point. They can easily be used with two or more wires. They offer a solid connection as the ring is fitted over a stud. This removes the possibility of the terminal disconnecting. Using the proper parts is essential to a high-quality electrical connection. Ring terminals are the most secure type of tongue-style terminal. They are known for their durability and ease of use.

Features:

• Tinned copper
• 600 Volts
• Operating temperature is -55°C to 125°C
• Highly compliant

Benefits & Protections:

• Solid connections
• Extremely durable
• Long-lasting
• Tin-plated
• Easy to install

Specifications:

• Color: Red
• Wire AWG: 22-18 AWG
• Stud Size (inch): 3/8"
• Terminal Pad Width (inch): 0.54”
• Package Size: Twenty-five included

Specifications:

• Gauge: 22-18 AWG
• Heat Shrink: Yes
• Package Qty: 25
• Post Size: 3/8"
• Type: Ring Terminals
• Box Dimensions: 1"H x 3"W x 4"L WT: 0.1 lbs
• UPC: 840248206433
