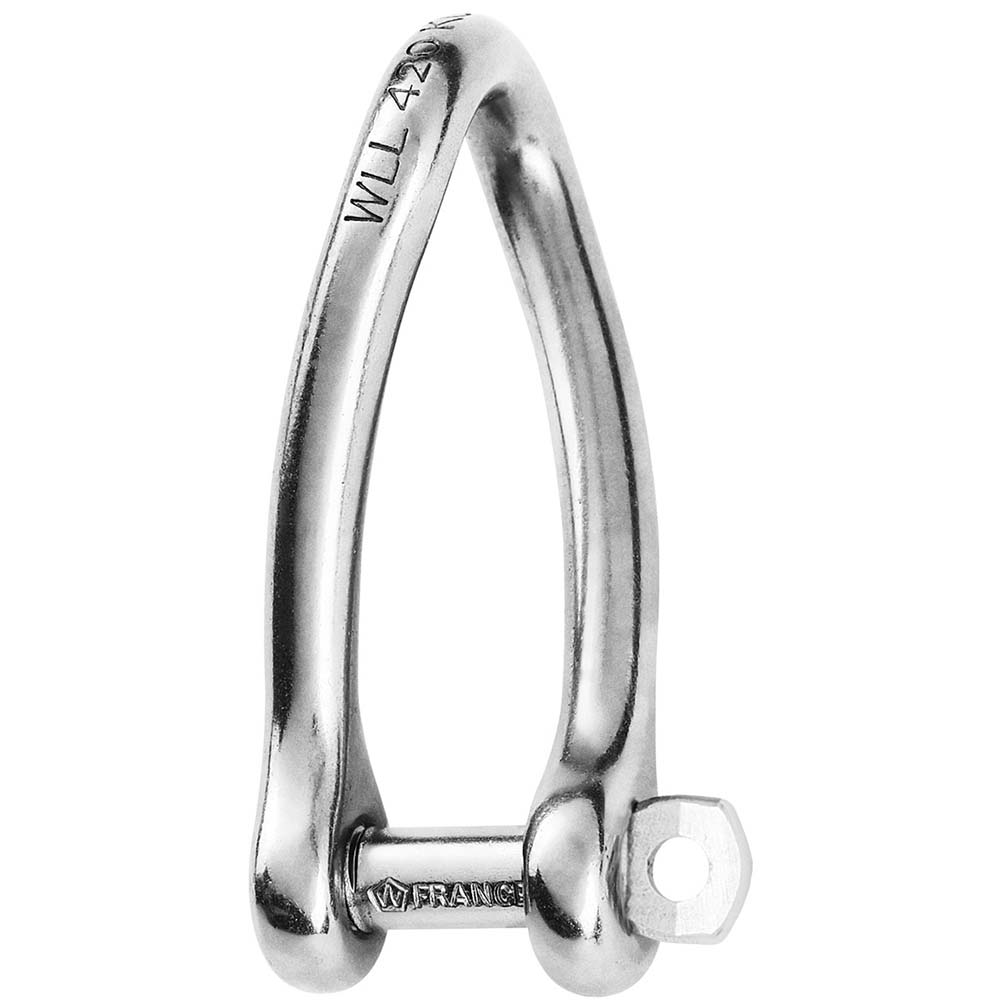

Captive Pin Twisted Shackle - Diameter 5mm - 3/16"

Features:

• Captive pin twisted shackle forged in grade 316L stainless steel
• The pin is connected to the body at all times even when opened
• The pin is locked into one of the indentations
• No risks of loosening due to vibrations
• Outstanding working and breaking loads
• Single-handed operation for more safety
• Part # 1422 is not suitable for lifting applications

Applications:

• Perfect for application where a 90° angle twist setup is required
• Often used to attach an unarticulated part (block on a rail) or on purchases

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 1050
• Breaking load (lb) 3300
• Weight (lb) 0.051

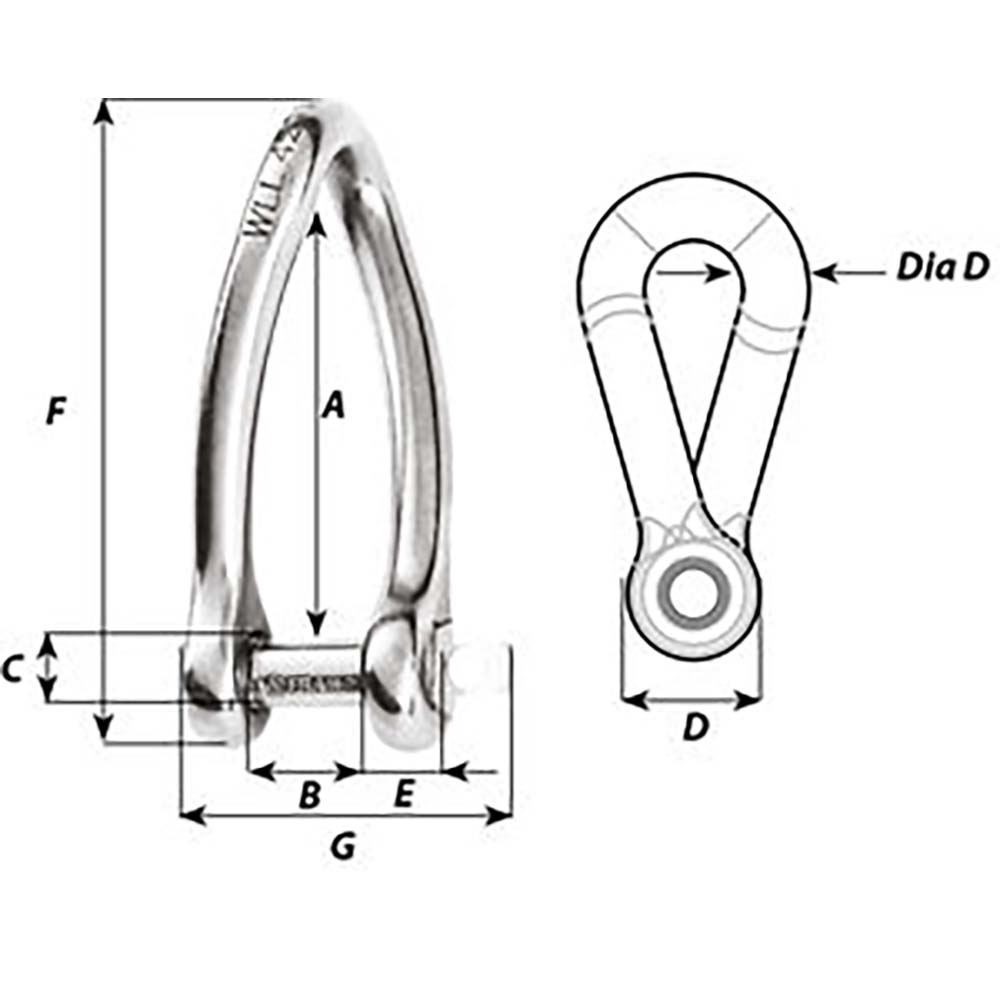

Dimensions (see 2nd image):

• A (inch) 1-29/64"
• B (inch) 25/64"
• C (inch) 15/64"
• D (inch) 7/16"
• D diameter (inch) 13/64"
• E (inch) 13/64"
• F (inch) 1-31/32"
• G (inch) 1-1/16"
