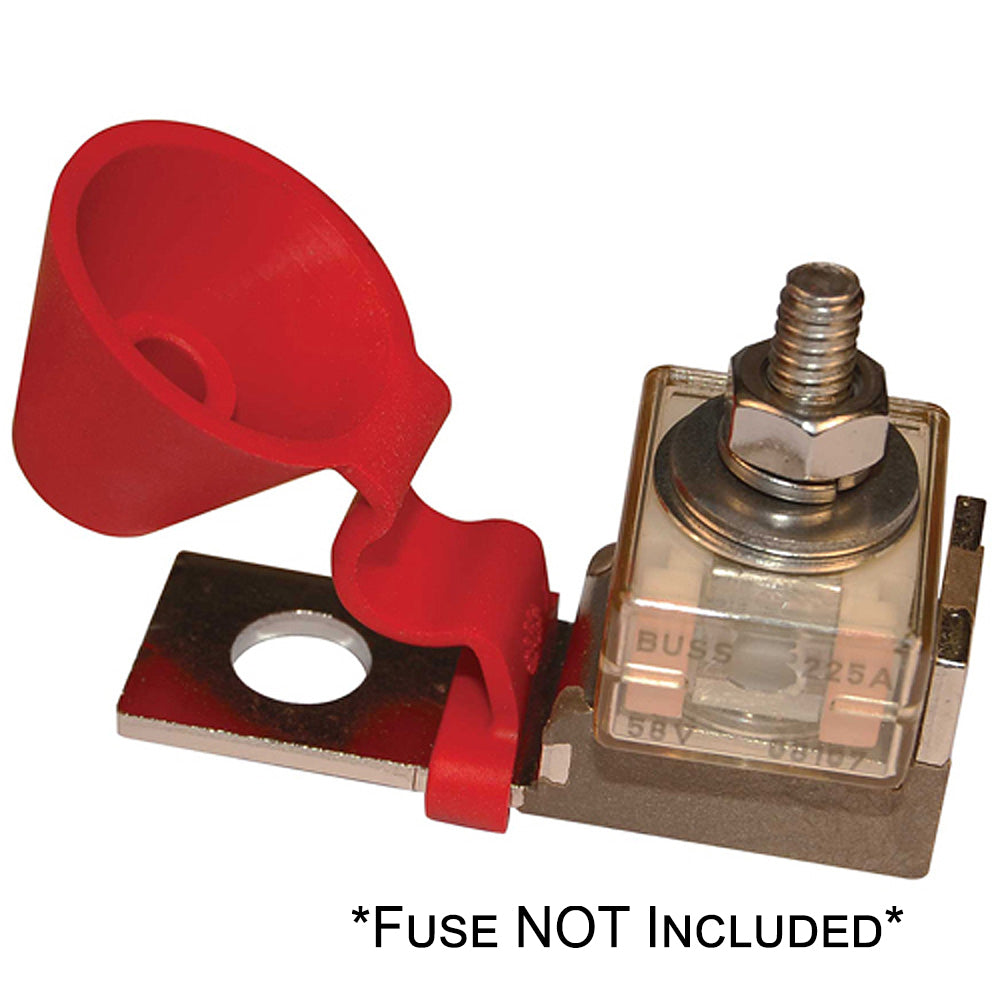

Terminal Fuse Black
- New isolated stud design uses standard 5/16" hardware and permits stacking of terminals
- Compact, high-amp fuse-Appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
- Provides high current protection in tight space constraints
- Weatherproof-suitable for small open-cockpit boats and other harsh environments
- Insulating cap prevents accidental shorts
- Use 5/16" or 3/8" ring terminal
Specifications
- Ignition Protected: No
- Maximum Amperage: 300a
- Maximum Voltage: 58v DC
- Terminal Stud: M8 (5/16")
- Maximum Torque: 75 in-lb
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Fuse Type: Terminal
- Type: Fuse Blocks
- Box Dimensions: 1"H x 4"W x 6"L WT: 0.5 lbs
- UPC: 632085051914
