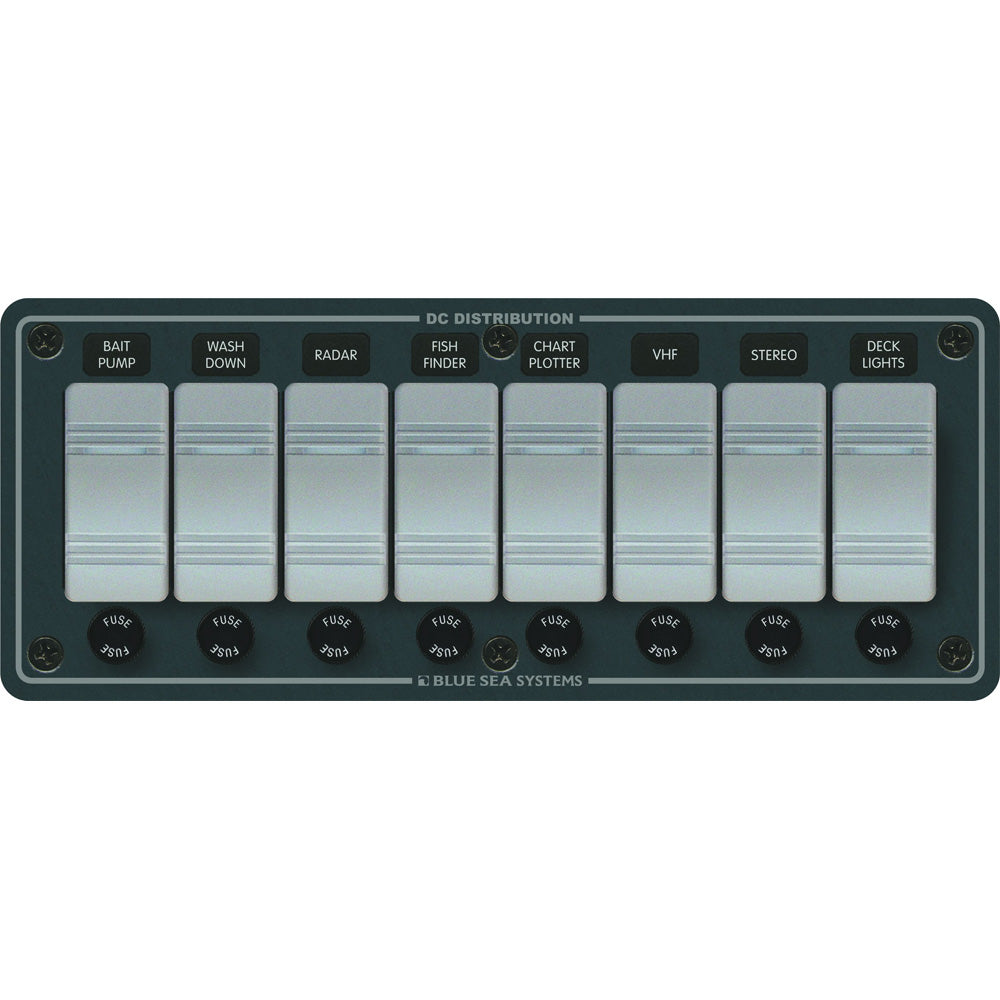

8261 Waterproof Panel 8 Position - Slate Grey
Features:
- Will withstand the water exposures normally encountered in above deck applications: salt spray, rain, hose washdowns, momentary immersions
- Designed for flybridge and open cockpit applications
- ON-OFF Contura Switches
- ON indicating LEDs embedded in switches
- Watertight mounting gasket included
- Countersunk mounting holes throughout
- Two-part polyurethane slate gray finish
- Industry standard height and width
- Mil-Spec chemical treatment via immersion to protect every surface detail from corrosion
- Completely wired and ready to install
Specifications:
- Weatherproof: Water Resistant
- Positions: 8
- Nominal Voltage: 12v / 24v
- Panel Cumulative Rating: 90A
- Switch Rating: 20A @ 12v DC / 15A @ 24v DC
- Height: 3.75"
- Width: 9.37"
- Depth: 3"
Included:
- (8) 5021 Panel Mount AGC/MDL Fuse Holder
- (1) 8214 Black 60 Label Set
- (8) 8230 Contura Switch SPST Gray - Off-On
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Waterproof: Resistant
- AC/DC: DC
- Max Breaker Quantity: 8
- Voltage: 12/24v
- Box Dimensions: 7"H x 10"W x 10"L WT: 5.6 lbs
- UPC: 632085082611
Owner's Manual (pdf)
