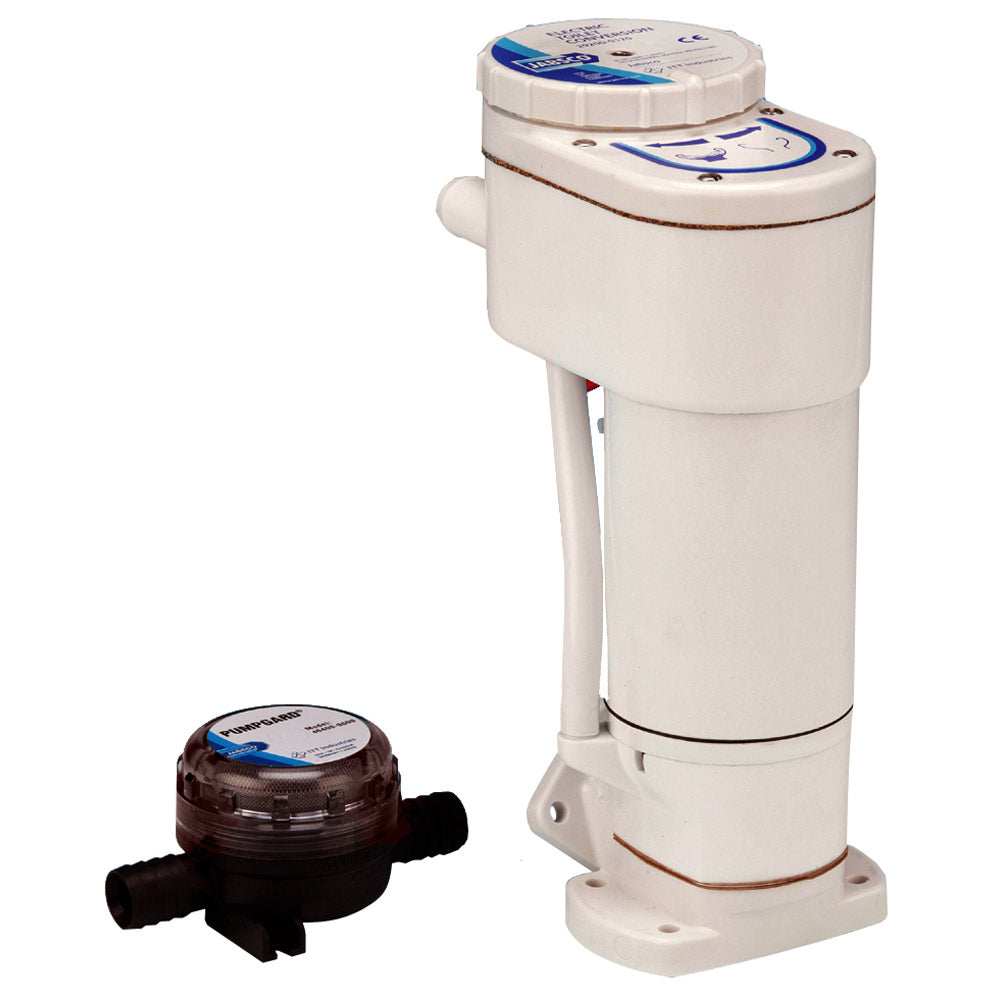

Electric Conversions
Features:
- Directly replaces manual pump assembly
- Easy to Install
- Simple to operate
- Dual action control allows water level to be varied
- Fits all Jabsco and Par 29090 and 29120 standard and large bowl toilets. Adaptors available to fit many other makes
- Suitable for use in above or below waterline installations
- Built in macerator
- Meets EN50081-2 for Electro Magnetic Compatibility (EMC)
- Meets ISO 8846 MARINE and USCG 183.410 for Ignition protection
- Self priming up to 0.6m(2ft)
- Waste pump discharges over an anti siphon loop up to 1.8m(6ft) and out of a through hull fitting down to 0.9m(3ft) below the surface
- Typical power consumption is less than 1.0 amp hour(12 Volt)
Specifications:
- Type: Misc
- Box Dimensions: 7"H x 10"W x 13"L WT: 7.75 lbs
- UPC: 671880520935
Owner's Manual (pdf)
