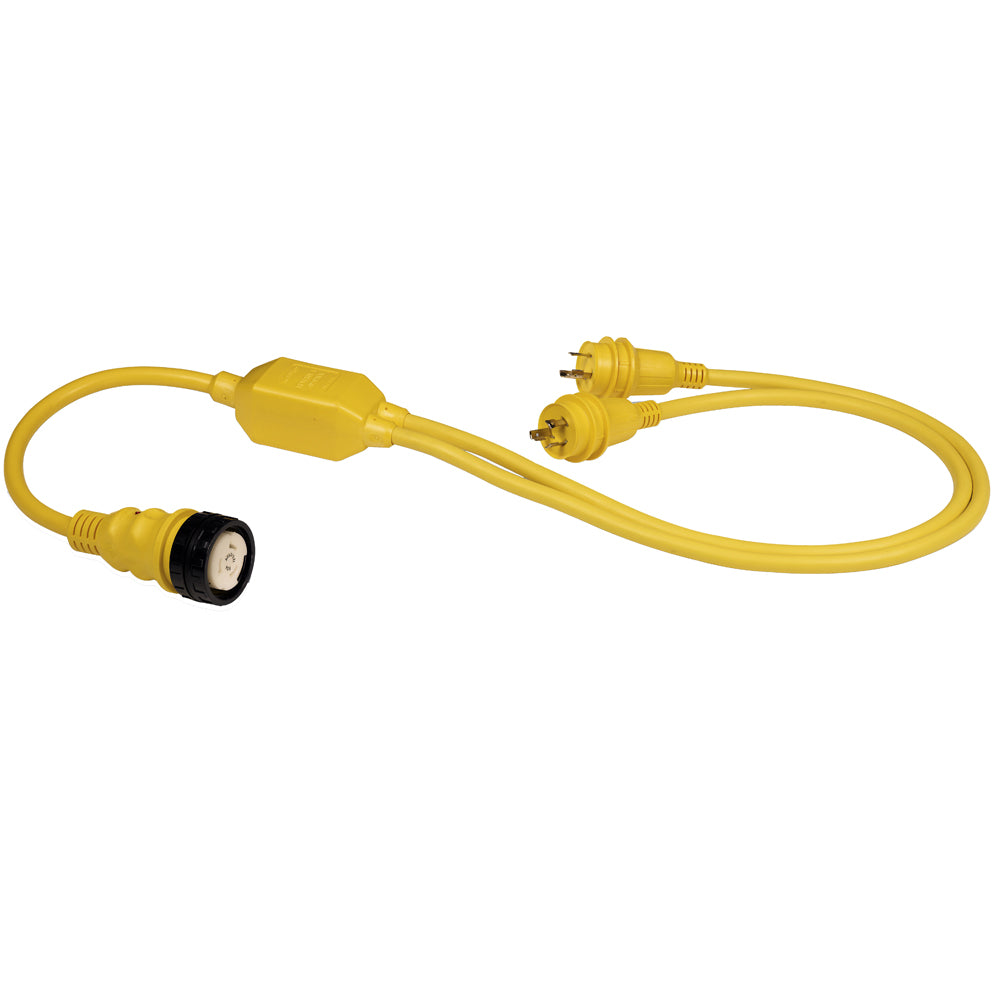

Marinco RY504-2-30 50A Female to 2-30A Male Reverse "Y" Cable

Marinco RY504-2-30 50A Female to 2-30A Male Reverse "Y" Cable

  • In stock, ready to ship
  • Inventory on the way
Regular price $563.33 Sale price$390.00
/

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.


Reverse "Y" Adapter

The Reverse "Y" Adapter has two male plugs with special power isolation circuitry for added safety. When one plug is connected to a receptacle, the circuitry isolates the second plug. The reverse "Y" provides 50A 125/250V power when only two 30A 125V receptacles are available.
Note: Reverse "Y" will NOT work with 50A, 125V, 3-wire inlets. Power is provided in both circuits to the 4-wire inlet, but the dock side receptacles limit the current in each circuit to 30A. The two 30A 125V receptacles must be supplied from a single power source providing from 208V to 250V between them for proper operation.

Boat Side: Female Connector

  • 50A 125/250V
  • w/Sealing Collar System
  • Attaches to boat inlet or cordset


Dock Side: Male Plug
  • 2-30A 125V
  • Locking
  • Attaches to dockside receptacle or cordset

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Type: Y-Adapter
  • Box Dimensions: 5"H x 12"W x 13"L WT: 7.4 lbs
  • UPC: 093344501357

Quick Guide (pdf)
