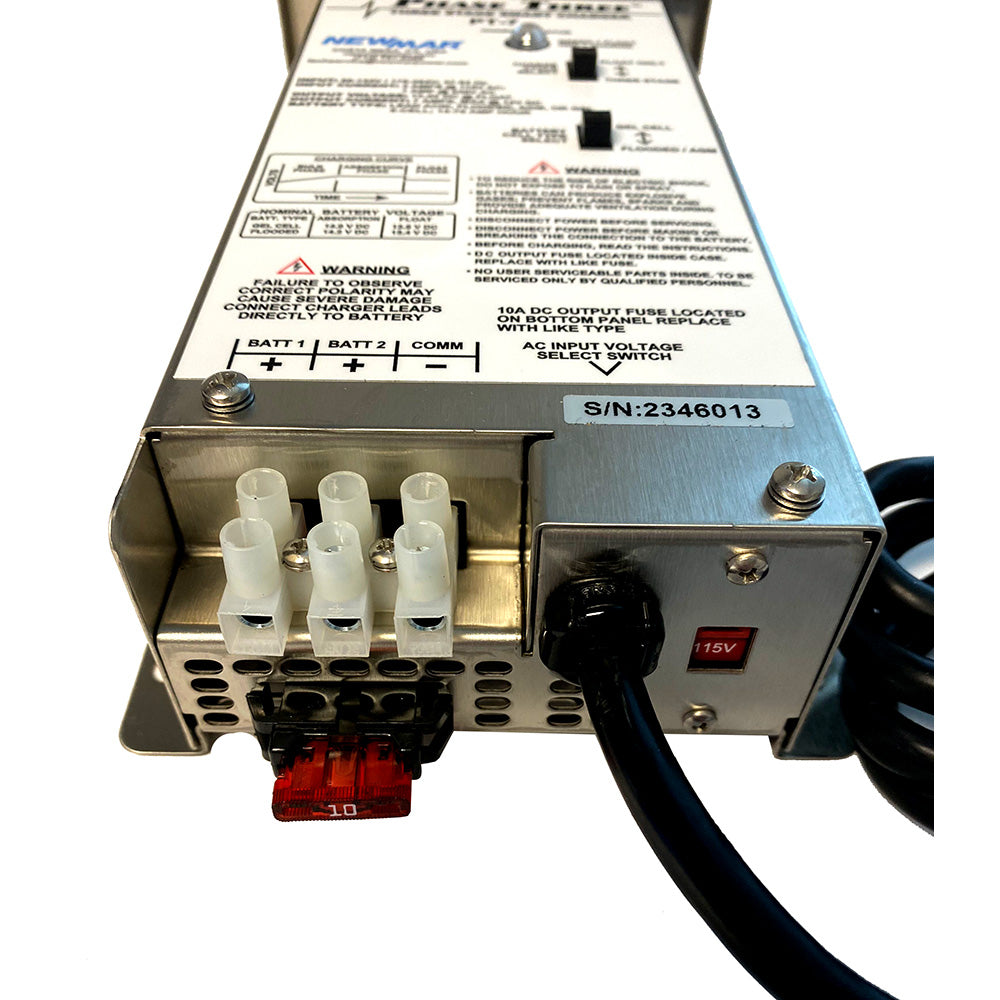

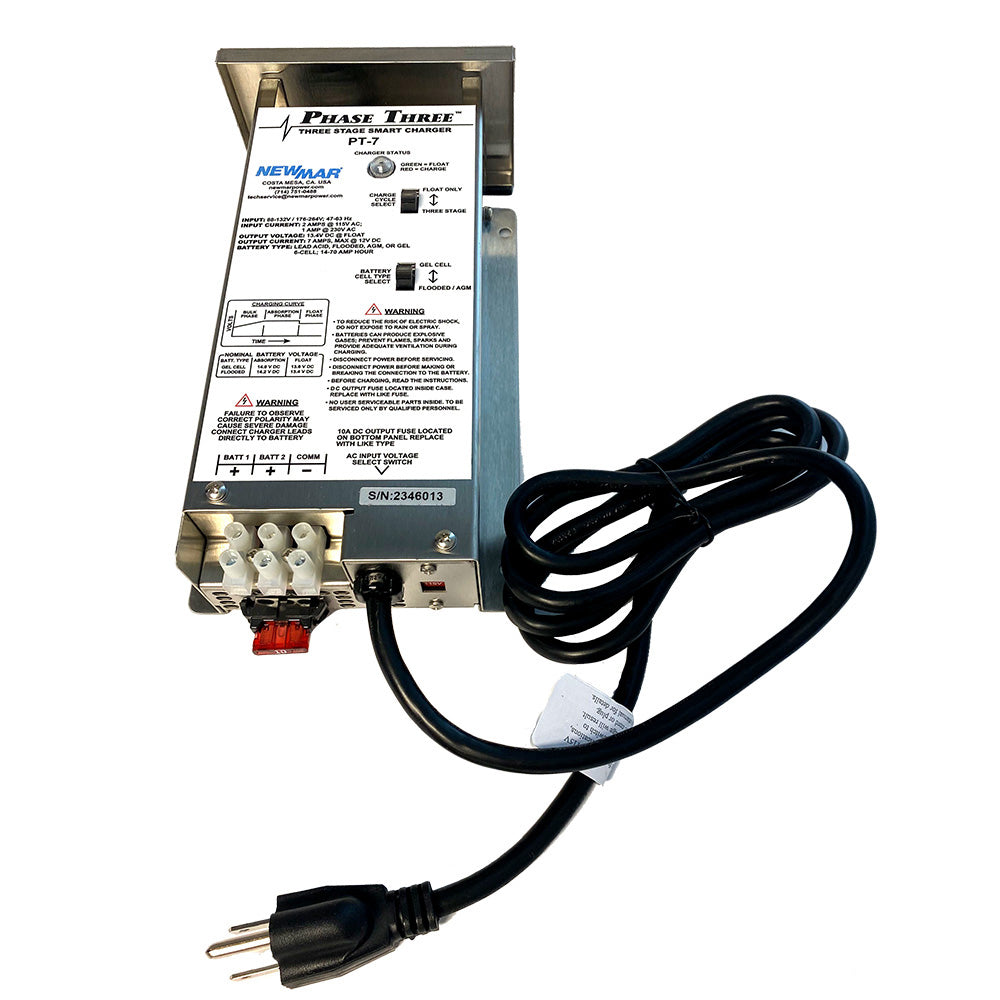

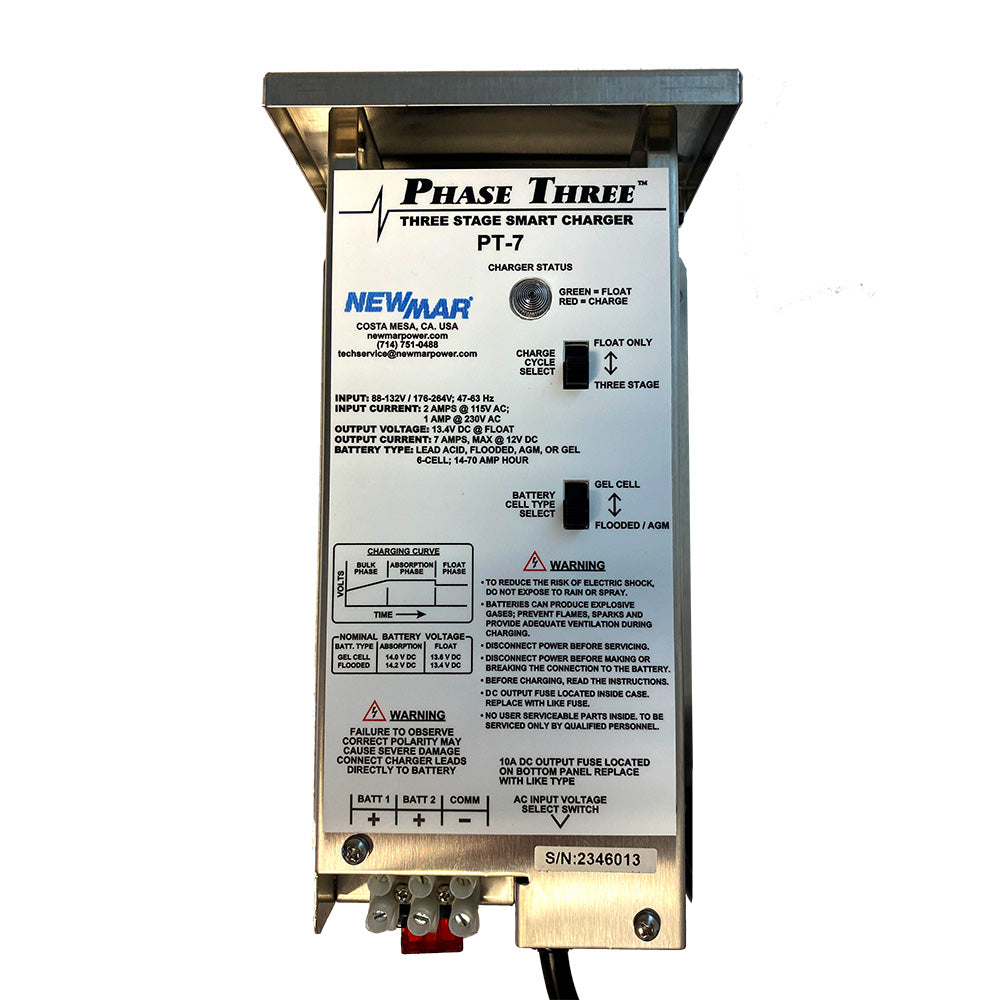

PT-7 Battery Charger

Newmar’s Phase Three Series Battery Chargers employ “Smart” battery charging technology for 12-volt systems aboard marine applications including workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.

A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. This model is housed in a rugged stainless-steel case with a durable white powder coat finish, and the internal circuitry is polyurethane-coated for maximum corrosion resistance.

Features:

  • “Smart” circuitry provides three-stage charging – bulk, absorption, float
  • Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages
  • Multiple isolated output banks; ammeter indicates total output current. (Except PT-7)
  • The optional sensor adjusts output voltage based on battery temperature. (Except PT-7)
  • Current limiting prevents damage from overloading
  • Clean well-regulated output can be used as a power supply; can power loads directly without a battery in line
  • Built to last – rugged stainless-steel case with a durable white powder coat finish with an optional drip shield and marinized internal circuitry
  • Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield
  • ABS-type approval for battery charging and power supplies

Specifications:

  • Input VAC (50-60 Hz.): 88-132 or 176-264
  • Input Amps @ Full Load: @ 115 VAC 2, @ 230 VAC 1
  • P.F. Rating: >.65
  • Max Output Amps: 7
  • Output Banks: 2
  • Battery Capacity (Amp-Hours): 14-70
  • Operating Temp. Rating Reference: T-1
  • Case Size Reference: A-1
  • Case Size (H x W x D): 10.5 x 5.0 x 2.8 inches (26.7 x 12.7 x 7.1 centimeters)
  • Weight Lbs./Kg: 3.2/1.5
  • Optional Temp. Sensor Model: N/A
  • Remote Panel Model: N/A
  • Equalize Option: No
  • Output Indicator Reference: M-1
  • Compliance Reference: CG, CE

Temperature Rating References:

  • Temperature: -10 degrees C to +45 degrees C
  • Derate Linearly From 100% @ 0 degrees C to 80% @ -10 degrees C

Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):

  • Gel-Cell: 14.0 VDC Charge @ 50% load and 13.6 VDC Float @ .5 amp load
  • Flooded/AGM: 14.2 VDC Charge @ 50% load and 13.4 VDC Float @ .5 amp load

Compliance References:

  • CG: USCG CFR 183.410 (Ignition protected)
  • CE: Carries the CE mark
  • ABS: PT Series meet SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Charger Input - Voltage: 115/230v
  • Charger Output - Amps: 7a
  • Charger Output Voltage: 12v
  • Charging Banks: 2
  • Inverter Input Voltage: 115/230v
  • Inverter Output Voltage: 12v
  • Outlet Qty: Hardwire
  • Portable: No
  • Box Dimensions: 6"H x 8"W x 12"L WT: 3.85 lbs

Quick Guide (pdf)
Owner's Manual (pdf)
