Pacer DT Deutsch Plug Repair Kit - 14-18 AWG (8 Position)

DT Deutsch Plug Repair Kit - 14-18 AWG (8 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits
• Applications:
• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 8
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Sockets
• Operating Temperature: -55°C to 125°C

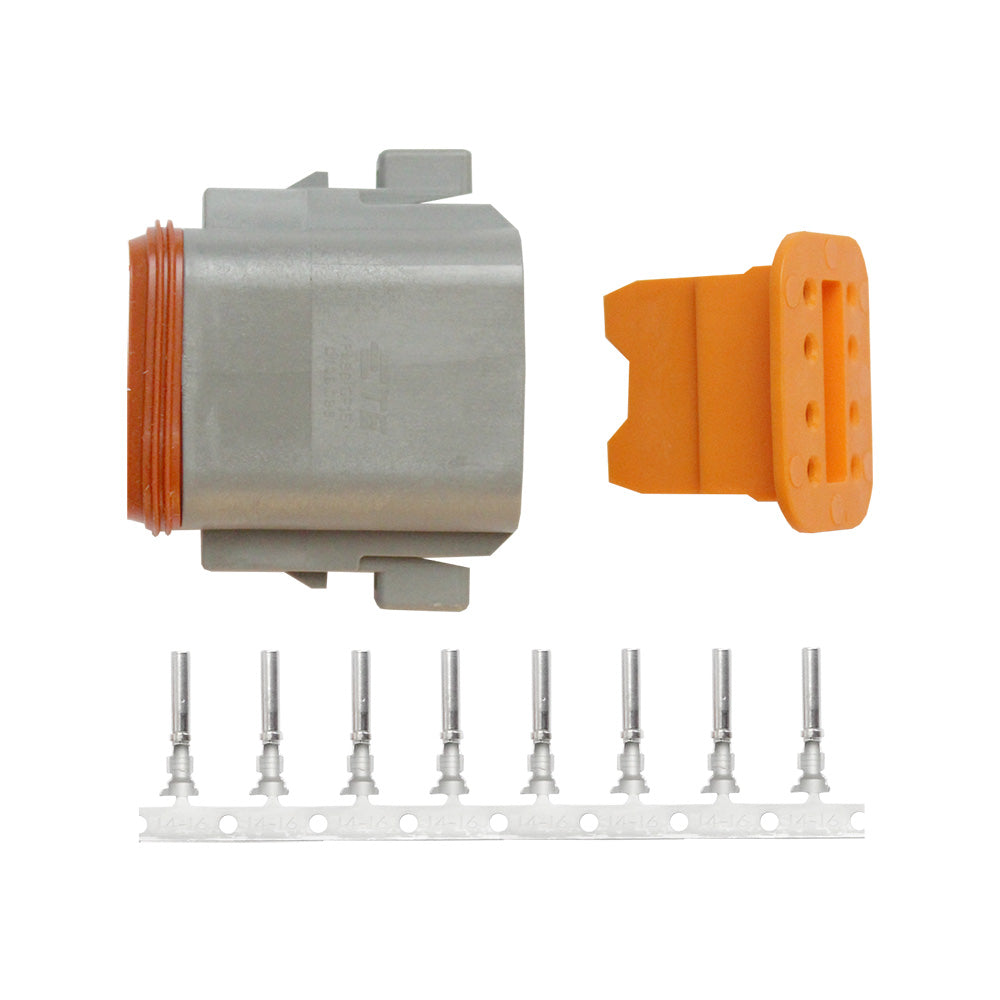

Contents:

• (1) 8 pos. plug
• (1) 8 pos. wedge lock
• (10) sockets
• (4) cavity plugs
