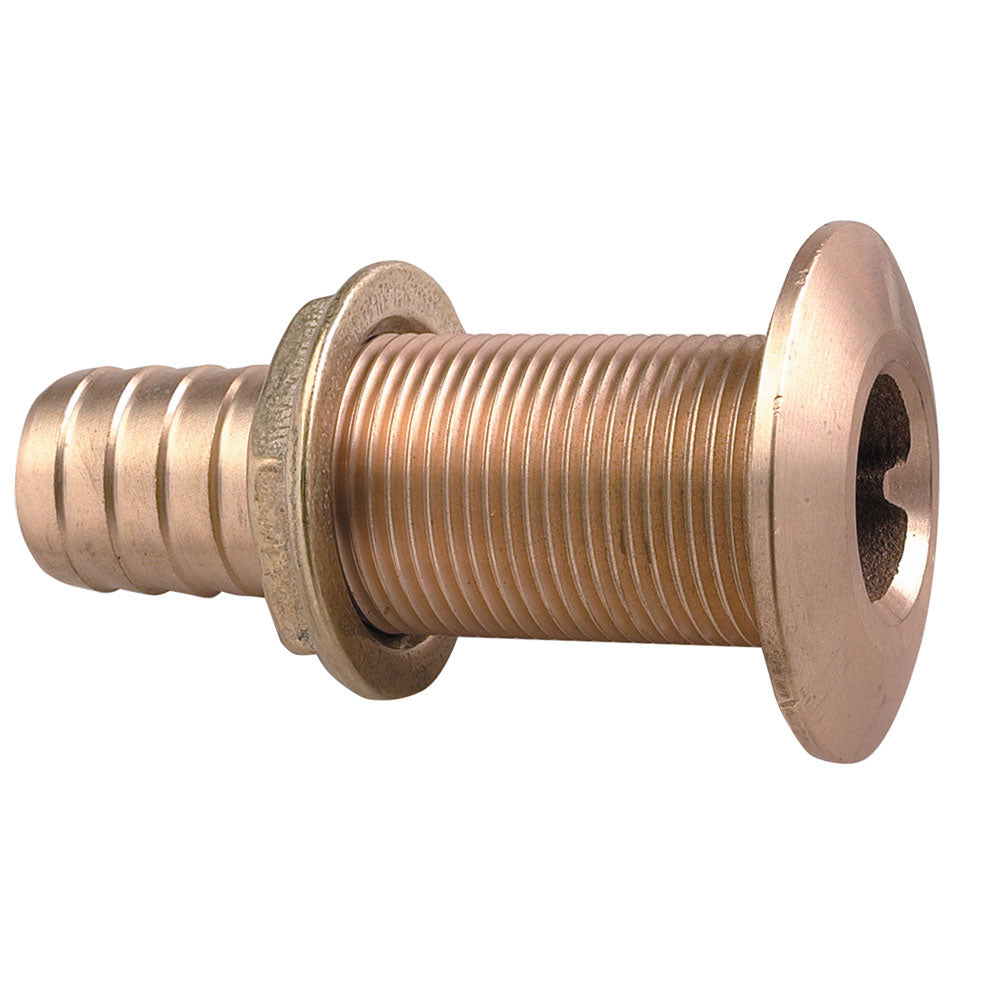

Perko 1-1/8" Thru-Hull Fitting f/ Hose Bronze Made in the USA

Perko 1-1/8" Thru-Hull Connection f/ use with Hose Bronze
Flange is machined to fit and grooved to retain bedding compound neck is threaded to approximately 3/16 inch from flange.

• Cast bronze, plain or chromed brass

• Regular or short length versons

Regular Length- Fits maximum hull thickness up to 2 inches
Short Length- For thin hull sections up to 5/8 inches maximum

Regular Length - Plain Bronze Technical Information:

• Hose Size Inches: 1-1/8

• Mounting Hole Diameter Inches: 1-5/16

• Maximum Hull Thickness Inches: 1-3/4

• O.D. Flange Inches: 2-1/4

• Model Number: 035006ADPP

• Ship Weight: 4.7/9.0 lbs.

• Made in the USA

Specifications:

• Hose Size: 1-1/8"
• Material: Bronze
• Box Dimensions: 2"H x 2"W x 5"L WT: 0.85 lbs
• UPC: 085226036125
