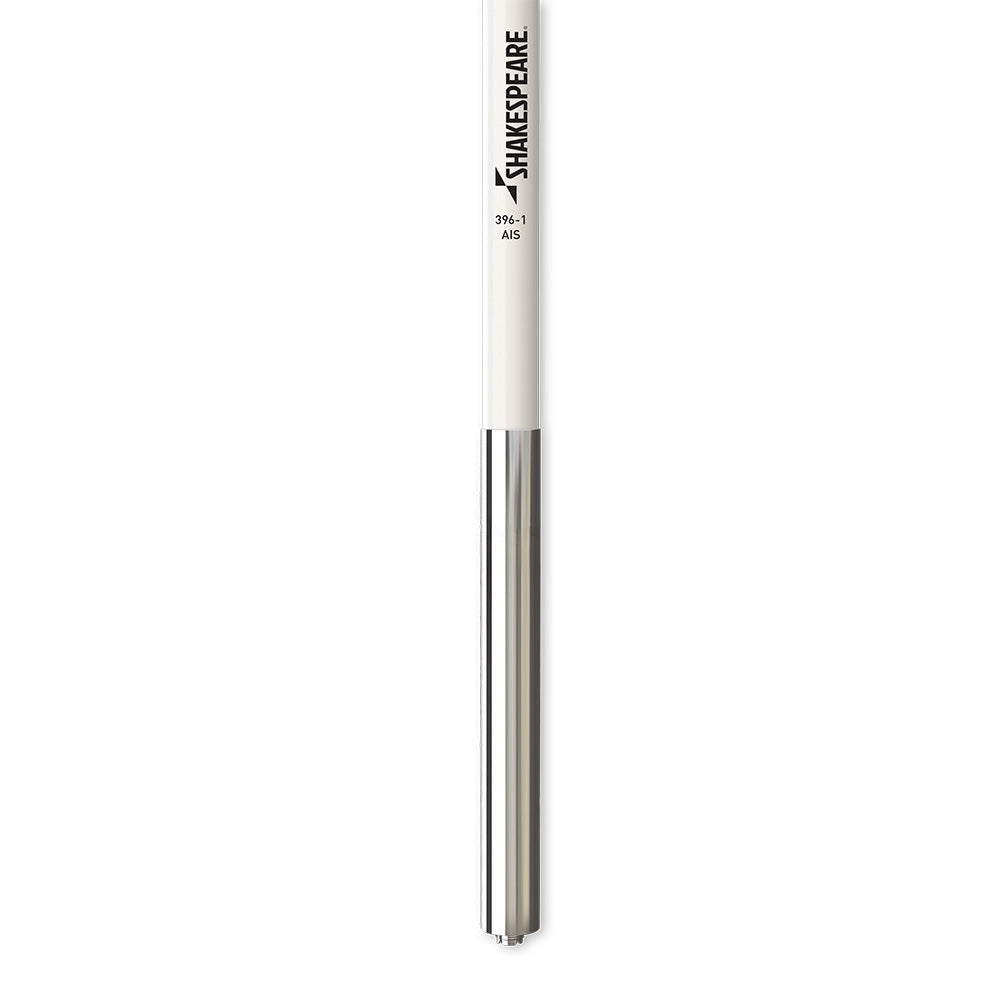

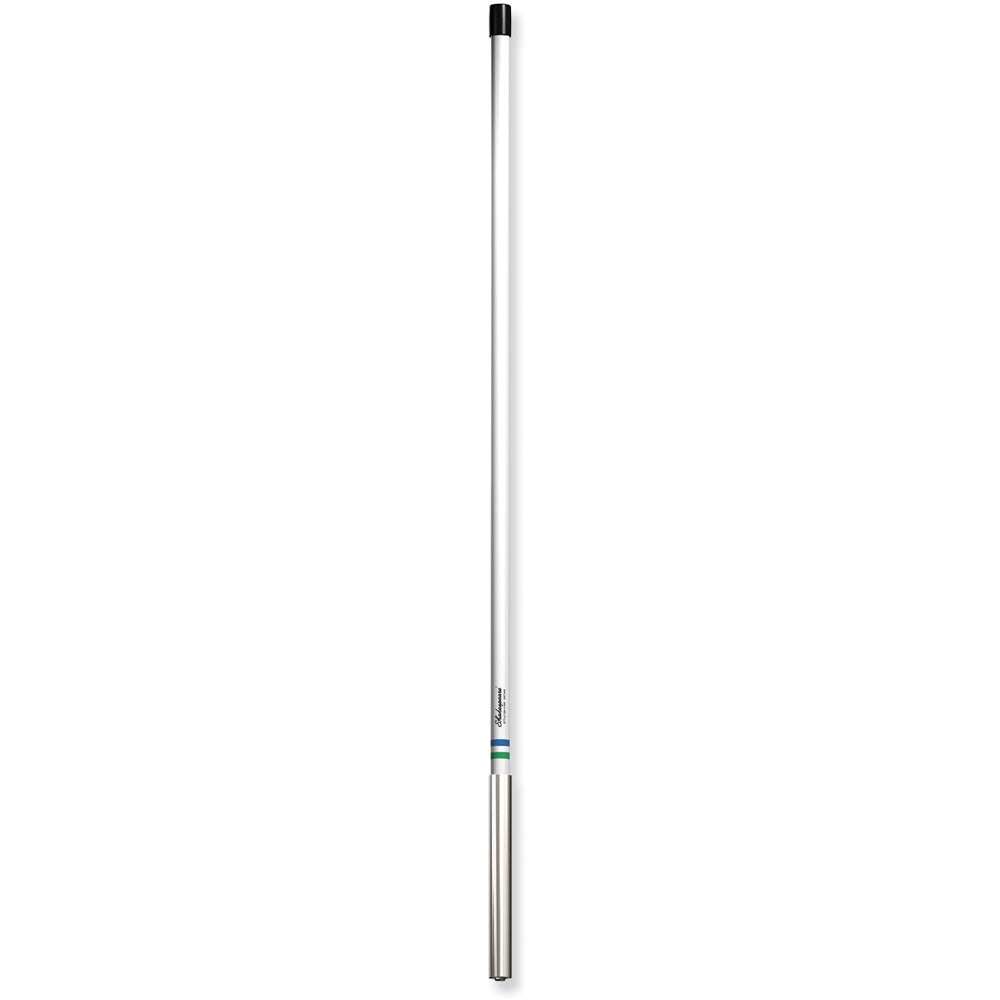

Shakespeare Style 396-1-AIS VHF Marine AIS
4' LENGTH 3dB
4' MAST MOUNT AIS ANTENNA
The 396-1-AIS has been specially designed to meet the broader bandwidth requirements of all popular AIS transceivers. Commercial-grade construction with a mast mounting sleeve.
- Brass and copper elements
- SO-239 connector at the base
- Suggested Mount: U-Bolts included. Can be strapped to a larger mast using steel banding (not supplied)
- One section
- Coax cable sold separately
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
-
Frequency: VHF Marine Band
-
Bandwidth within 2.0:1 SWR: 6.0 MHz
-
SWR: 1.5:1 at 156.8 MHz
-
Gain: 3dB
-
Impedance (Ohms): 50
-
Gain: 3dB
-
Max. Input (Watts): 100
-
DC Ground: no (will read open-circuit with ohmeter test)
-
Termination: SO-239 at bottom of antenna
-
Height (feet): 4
-
Polarization: Vertical
- Radiation pattern: Omni-directional
Specifications:
- Antenna Band: VHF
- Color: White
- Construction: Fiberglass
- Length (Inches): 48"
- Box Dimensions: 3"H x 3"W x 55"L WT: 3 lbs
- UPC: 719441170585
Quick Guide (pdf)
